Wall Putty Production Plant

Complete dry mixing plant for the production of wall putty powder

Wall Putty Production Plant
  • Wall Putty Production Plant
  • Wall Putty Production Plant
  • Wall Putty Production Plant
  • Wall Putty Production Plant

    • Wall Putty Production Plant

    Complete dry mixing plant for the production of wall putty powder
    • Capacity of production line 10-30 tons/hour
    • Capacity of mortar mixer 15-88 tons/hour

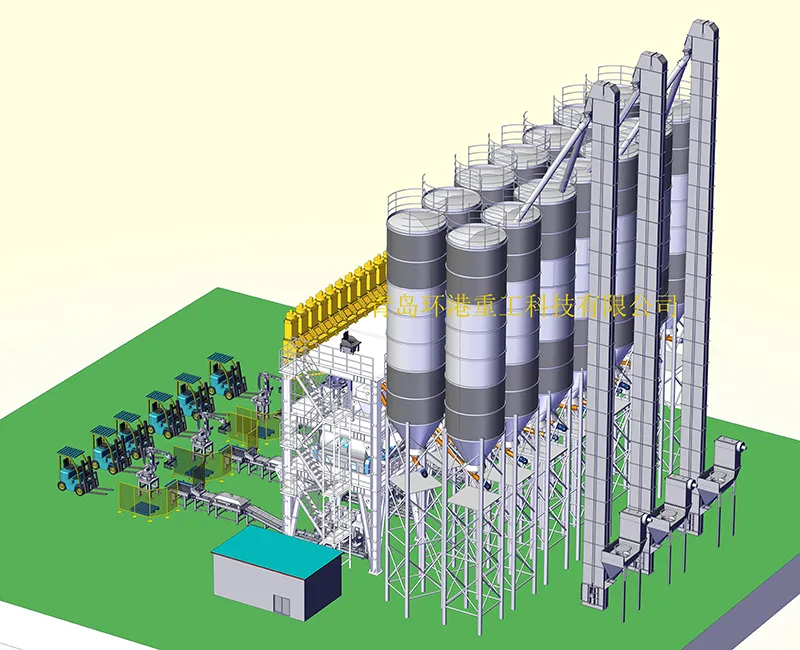

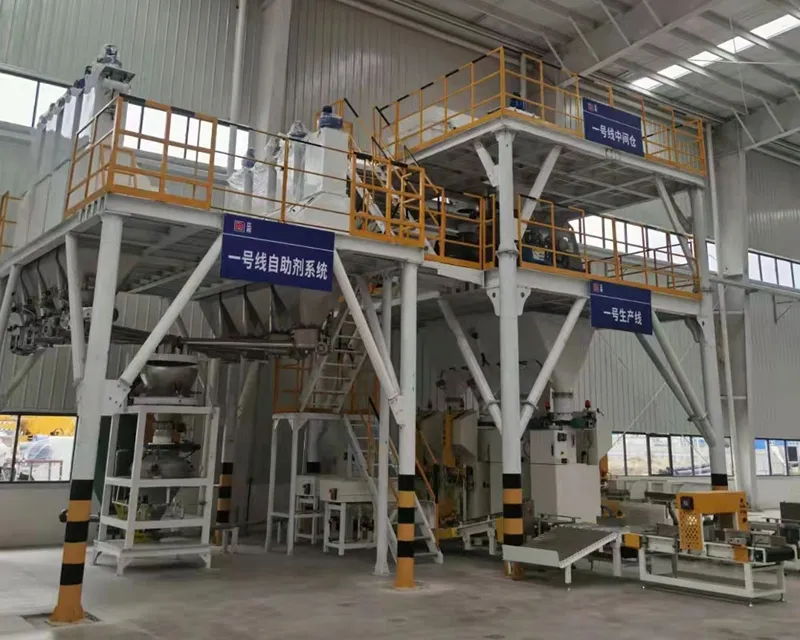

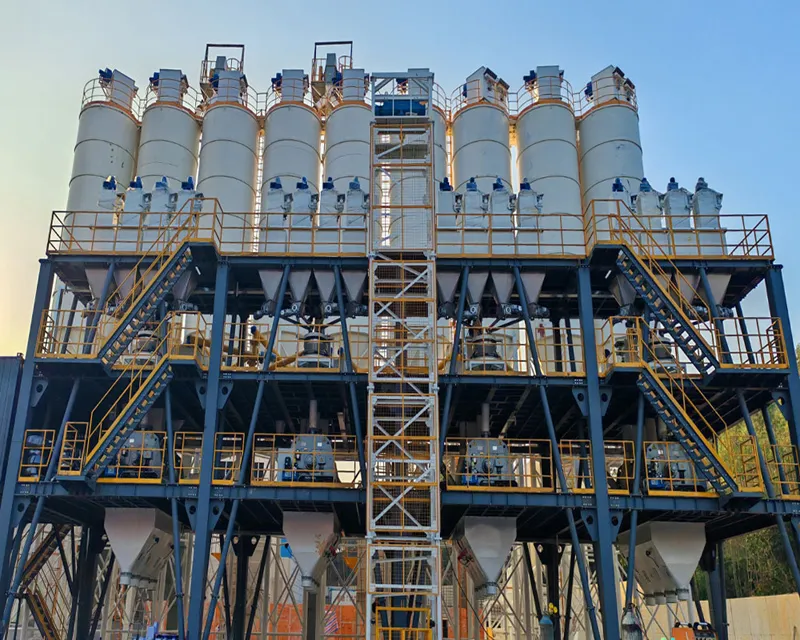

    Our fully automatic and eco-friendly wall putty powder processing system is designed for an annual output of 100,000 to 300,000 tons. By adjusting raw material formulations, it can produce various types of wall putty, including interior wall putty, exterior wall putty, standard putty, high-gloss putty, and gypsum-based putty. Depending on the selected model, the hourly production capacity ranges from 10 to 30 tons. This wall putty manufacturing system features a tower-type structure, with powder silos positioned at the top of the main tower. The additive system utilizes an independent platform-based metering and pumping system, ensuring precise ingredient dosing. Raw materials move downward through various processing stages, including the weighing section, mixing chamber, finished product storage, automated packaging, and palletizing system.

    To meet different formulation requirements, this dry mixing plant integrates computerized weighing and dosing technology, allowing precise batching before materials enter the high-efficiency mixer. The blended putty powder is then processed immediately for final packaging. The entire operation is fully automated and intelligently controlled, reducing labor requirements while ensuring consistency and efficiency.

    Contact Us
    Specifications
    Model THZ2000 THZ3000 THZ4000 SHG6000 SHG8000
    Mixer model DZ2000 DZ3000 DZ4000 SZ6000 SZ8000
    Mixer production capacity 10-12m³/h 15-18m³/h 20-24m³/h 28-30m³/h 35-40m³/h
    Mixer power 22kW 30kW 37kW 55/75kW 75/90kW
    Number of packaging machines 2-3Set 3Set 3-4Set 4-6Set 6-8Set
    Production line capacity 8-10m³/h 10-14m³/h 12-18m³/h 16-24m³/h 20-30m³/h
    Model Mixer Type Mixer Model Capacity Per Hour (tons) Capacity Per Year (million tons)
    GHZ1500 Single shaft horizontal mixer DZ1500 15-18 7-9
    GHZ2000 Single shaft horizontal mixer DZ2000 20-24 9-11
    GHZ3000 Single shaft horizontal mixer DZ3000 30-35 14-16
    GHZ4000 Single shaft horizontal mixer DZ4000 40-45 19-21
    GHZ6000 Double shaft horizontal mixer SZ6000 60-65 29-31
    GHZ8000 Double shaft horizontal mixer SZ8000 80-88 38-42

    Note:
    The parameters represent only the capacity of the mixers. Actual production output will also depend on the performance of packaging and palletizing systems (calculated based on two shifts of 16 hours per day, 300 working days per year).

    Wall Putty Production Plant

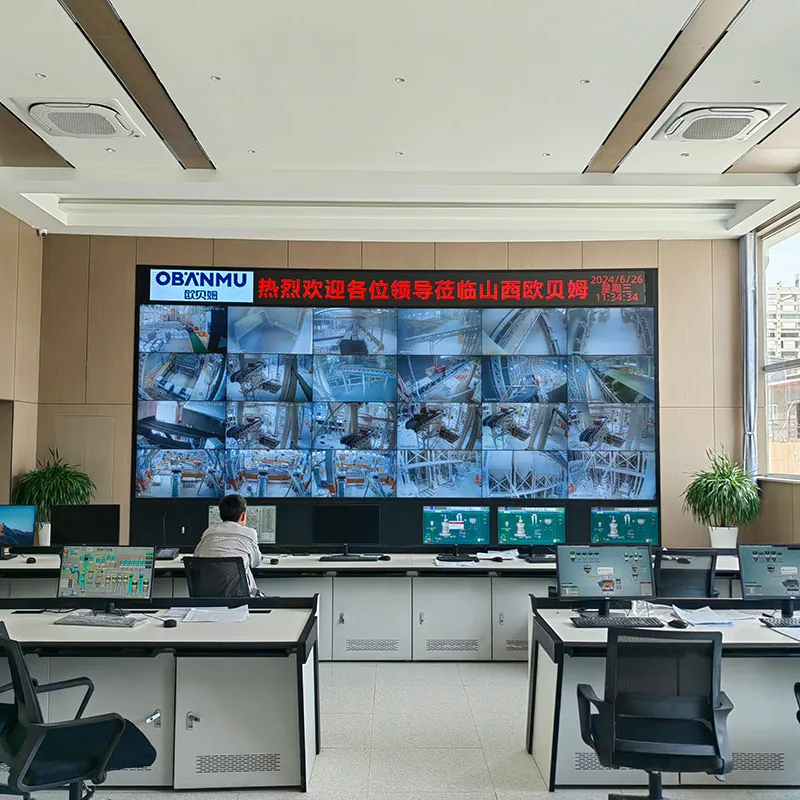

    • The centralized control system enables fully automated wall putty production, eliminating the need for manual operation. From raw material handling to final packaging, every step, including weighing, conveying, mixing, packaging, transport, and palletizing, is carried out automatically, ensuring efficiency and consistency in production.
    • The dust collection system is designed with a dual approach, incorporating localized and centralized dust control. Areas prone to high dust accumulation use targeted dust extraction and recycling, while the rest of the facility benefits from a comprehensive dust recovery system, maintaining a clean and well-regulated workshop environment.
    • The conveying system integrates multiple finishing processes, including bag shaping, dust removal, coding, and heat sealing, ensuring that each package maintains a clean and uniform appearance. After packaging, products are automatically stacked neatly onto pallets and wrapped for secure storage and transport, maintaining a professional and efficient output.
    • We provide comprehensive support, covering every stage of the production process. This includes investment analysis, market segmentation, equipment selection, installation, after-sales service, personnel training, maintenance, and formulation support. By offering a comprehensive service package, we help manufacturers optimize operations and ensure long-term efficiency.

    Ideal for manufacturing high-quality putty powders used in commercial and residential construction projects, ensuring smooth and durable wall finishes for interior and exterior surfaces.
    Individual Equipment Overviews
    Dry Bulk Tanks

    Designed for the storage and supply of raw materials used in mortar production.

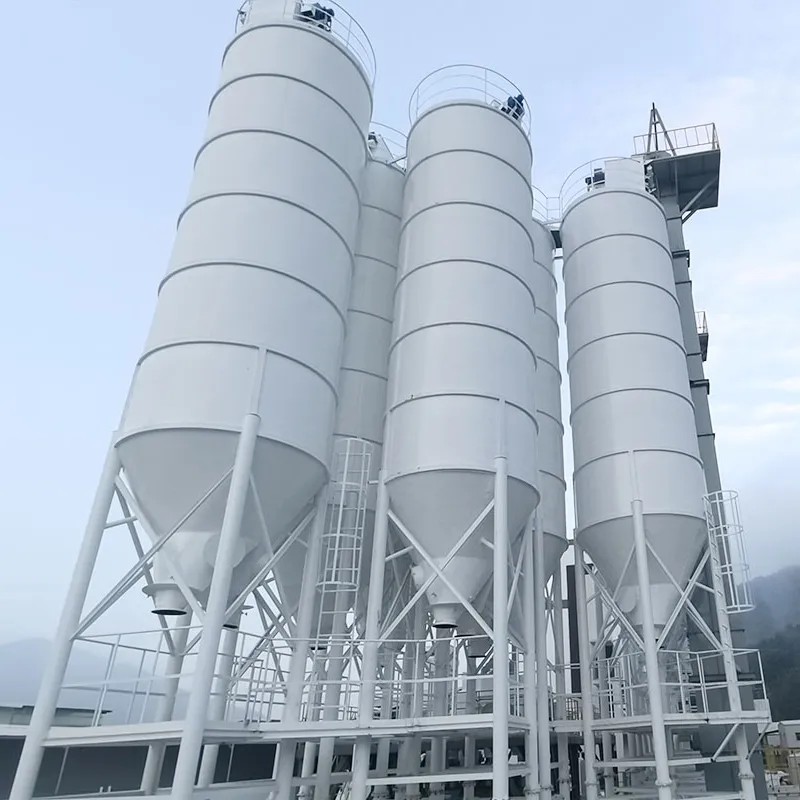

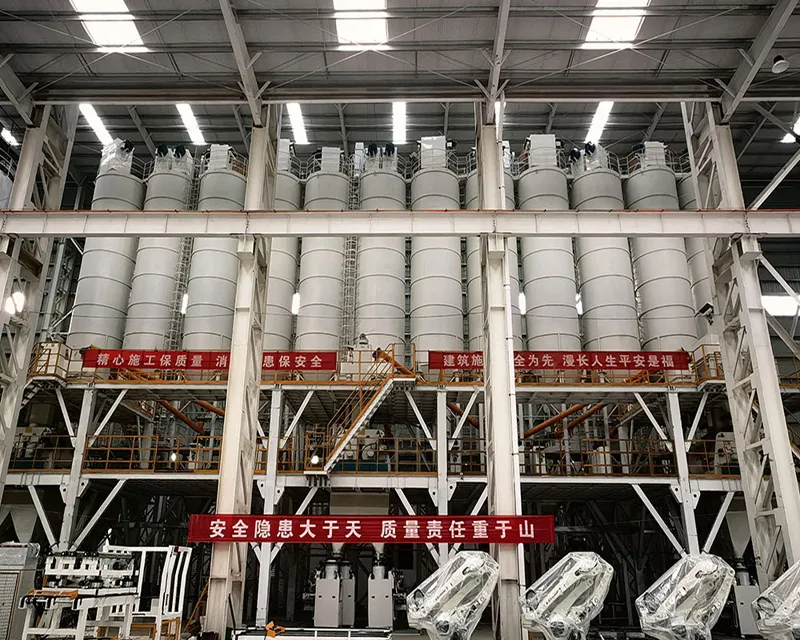

    Storage Silo Systems

    Raw materials and finished mortar are stored in high-durability silos built with corrosion-resistant and wear-resistant materials. These silos ensure safe and efficient material handling throughout the production process.

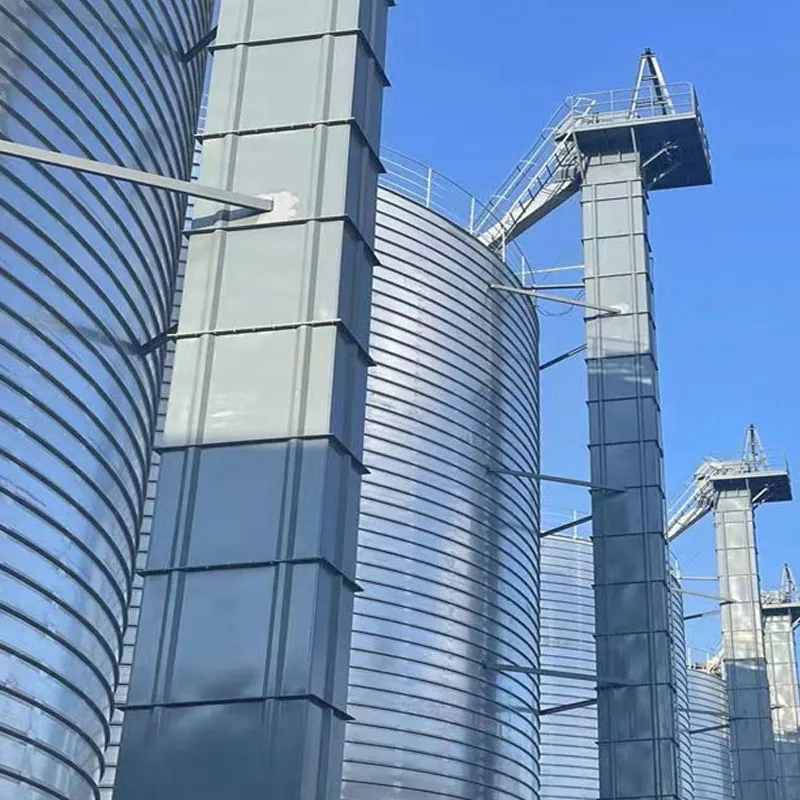

    Bucket Elevator

    The bucket elevator is used for vertical transportation of raw materials, lifting them from a lower level to the inlet of storage silos for efficient handling and processing.

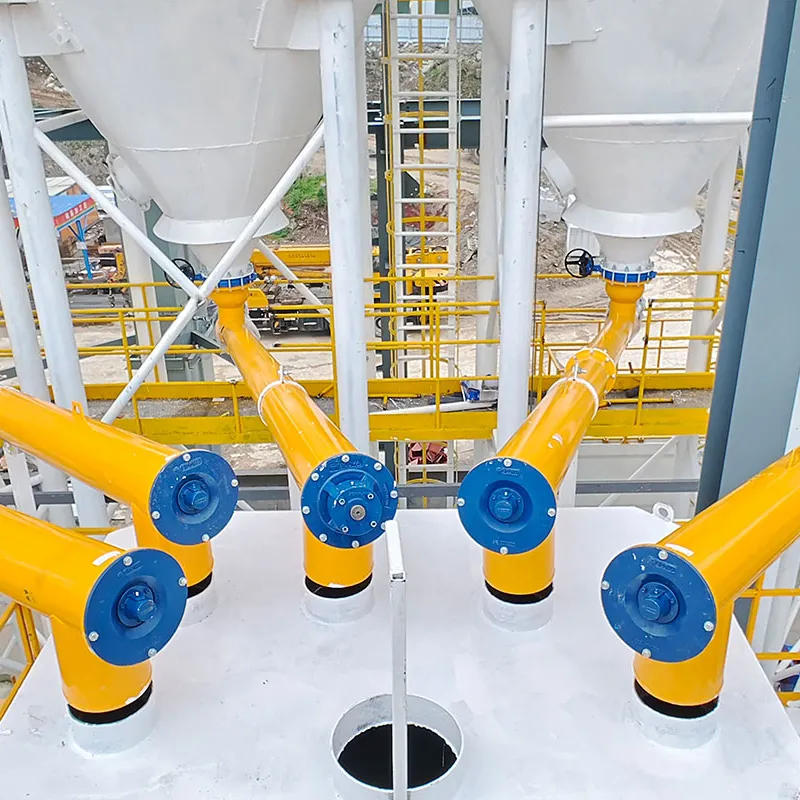

    Screw Conveyor

    Used for the conveying of various types of mortar and raw materials, ensuring efficient and continuous material flow throughout the production process.

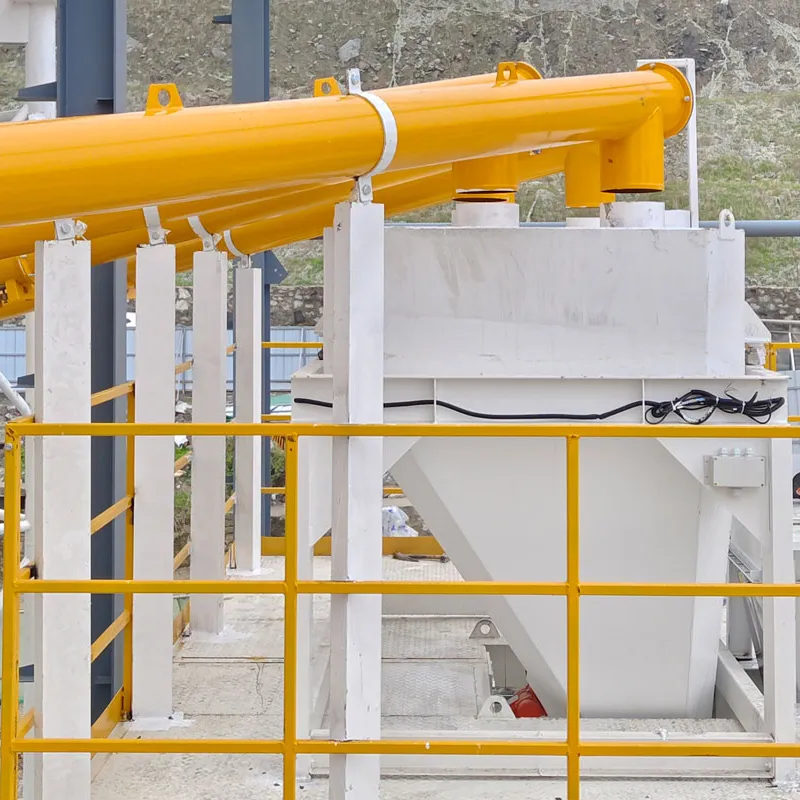

    Weighing System

    During the batching process, the system precisely measures raw material quantities according to predefined formulations, ensuring accuracy and consistency in mortar production.

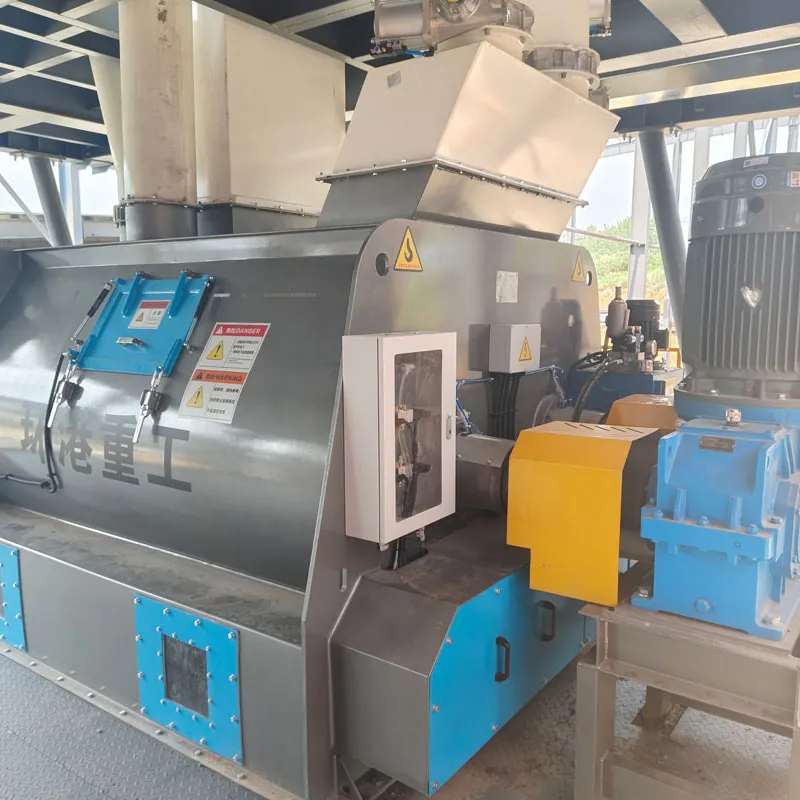

    Double Shaft Horizontal Mixer
    Double Shaft Horizontal Mixer
    Finished Product Silo

    The finished product silo allows for preliminary quality control by temporarily storing dry mortar before packaging. This makes it possible to identify issues such as material segregation or clumping. If quality problems are detected, packaging and subsequent processes can be stopped immediately to prevent defective products from being released.

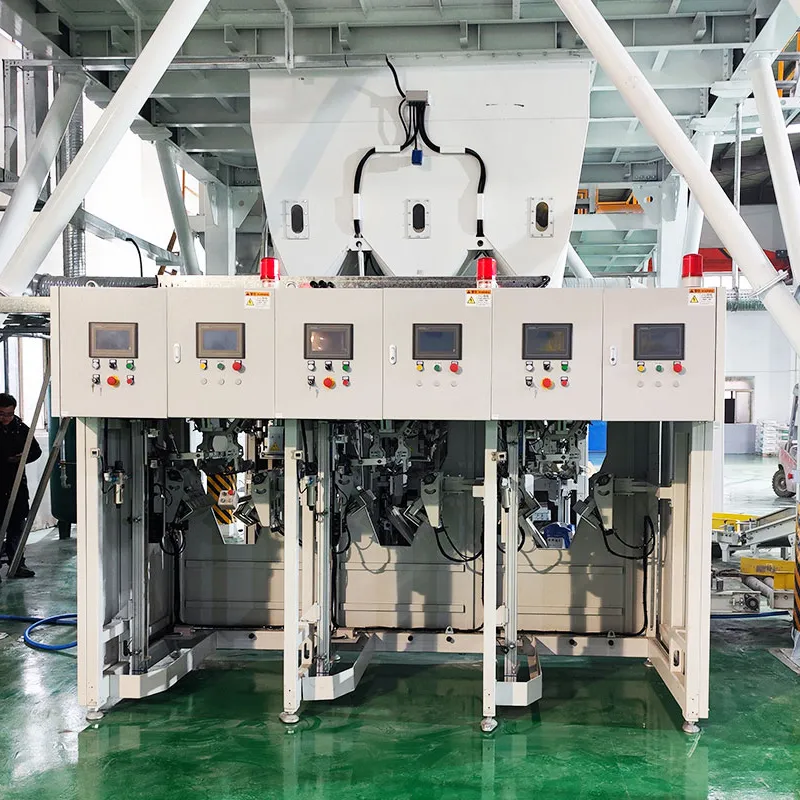

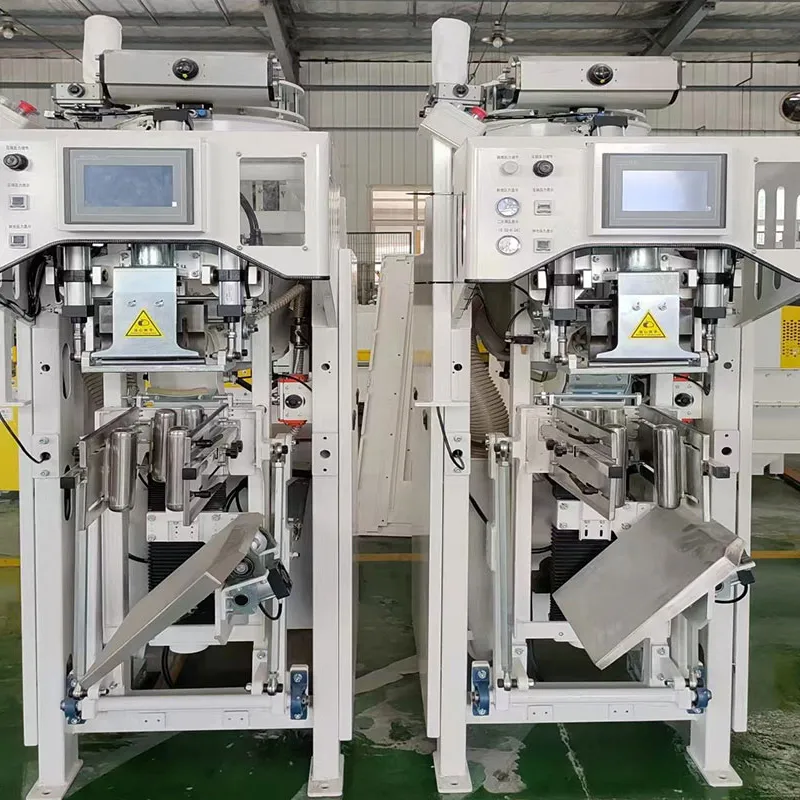

    Valve Bag Filler
    Valve Bag Filler
    Automatic Valve Bag Placer
    Automatic Valve Bag Placer

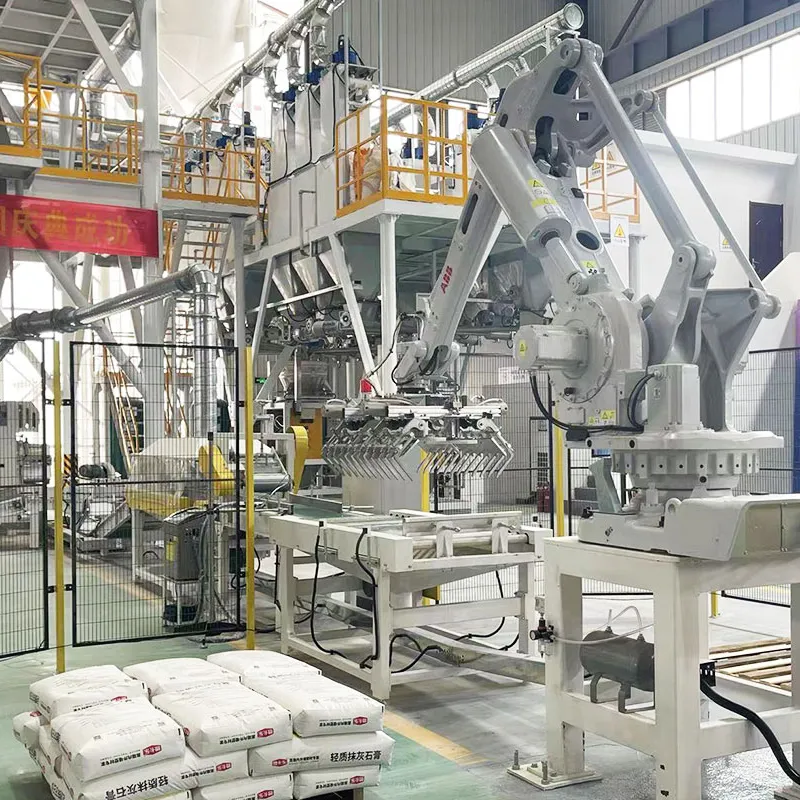

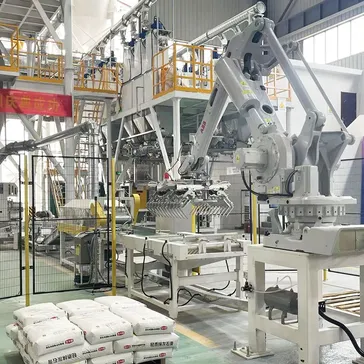

    Robotic Bag Palletizer
    Robotic Bag Palletizer

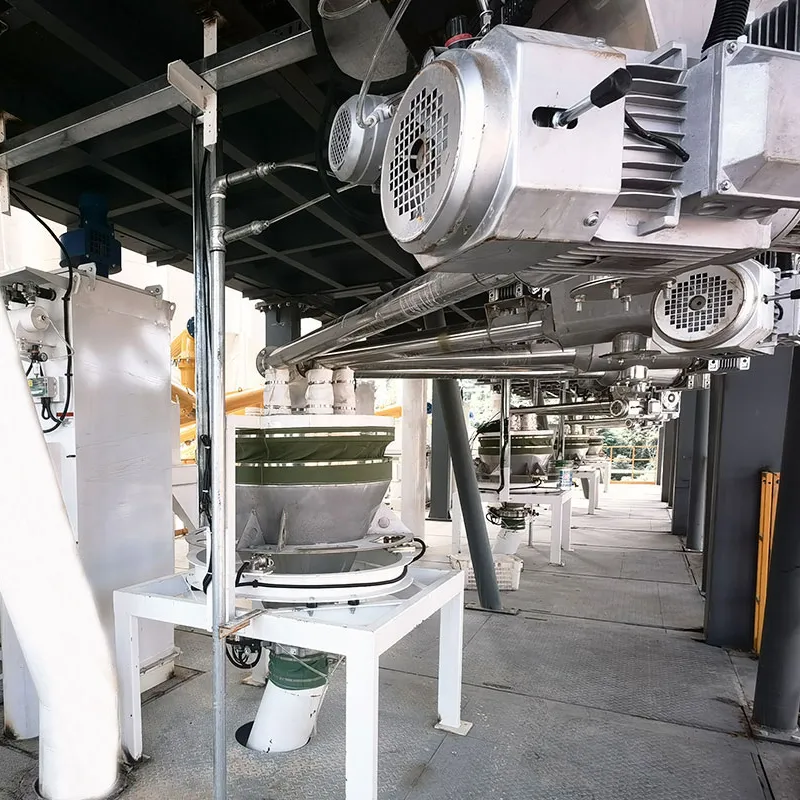

    Micro Batch Dosing System
    Micro Batch Dosing System
    Electronic Control System

    The electronic control system automatically corrects underweight or overweight batches, accurately measures different raw materials, and allows individual adjustment of tolerance ranges for each discharge. It also automatically allocates production batches based on mixer capacity. Additionally, the system generates production reports, simplifying data management and record-keeping.

    • The first step involves direct consultation with the client to assess specific production needs. Our team introduces available technologies, recommends suitable solutions, and finalizes key technical parameters.
    • Once the requirements are established, we coordinate production schedules to align with the client's project timeline. This ensures smooth integration of the manufacturing process with on-site construction.
    • Engineering support includes detailed technical drawings and documentation necessary for installation and system implementation. We assist clients throughout the setup phase, ensuring all components are properly positioned and configured.
    • During installation and commissioning, our technical experts oversee the process, performing equipment calibration and system optimization. The goal is to achieve full operational efficiency before the final handover.
    • Besides installation, we provide comprehensive after-sales services, including maintenance support, operator training, spare parts supply, and ongoing technical assistance. This ensures long-term reliability and high performance of the production line.

    • Exterior wall putty
    • waterproof putty
    • gray calcium-based putty
    • gypsum putty
    • cement-based putty
    • calcium carbonate putty
    • colored putty
    Related Case Studies
    • Beijing Dongfang Yuhong Waterproof Technology Co., Ltd. – Construction Materials Manufacturer
      Beijing Dongfang Yuhong Waterproof Technology Co., Ltd. – Construction Materials Manufacturer
      Industry: Building materials production
      Installed Equipment: Two wall putty powder production lines
      Materials Produced: Interior and exterior wall putty powder
    • Nippon Paint (China) Co., Ltd. – Chemical & Coatings Manufacturer
      Nippon Paint (China) Co., Ltd. – Chemical & Coatings Manufacturer
      Industry: Chemical raw materials and coatings manufacturing
      Installed Equipment: Two wall putty powder production lines
      Materials Produced: Interior and exterior wall putty powder
